Conector de horquilla forjado ENORM para una conexión directa entre la cadena y otros componentes.

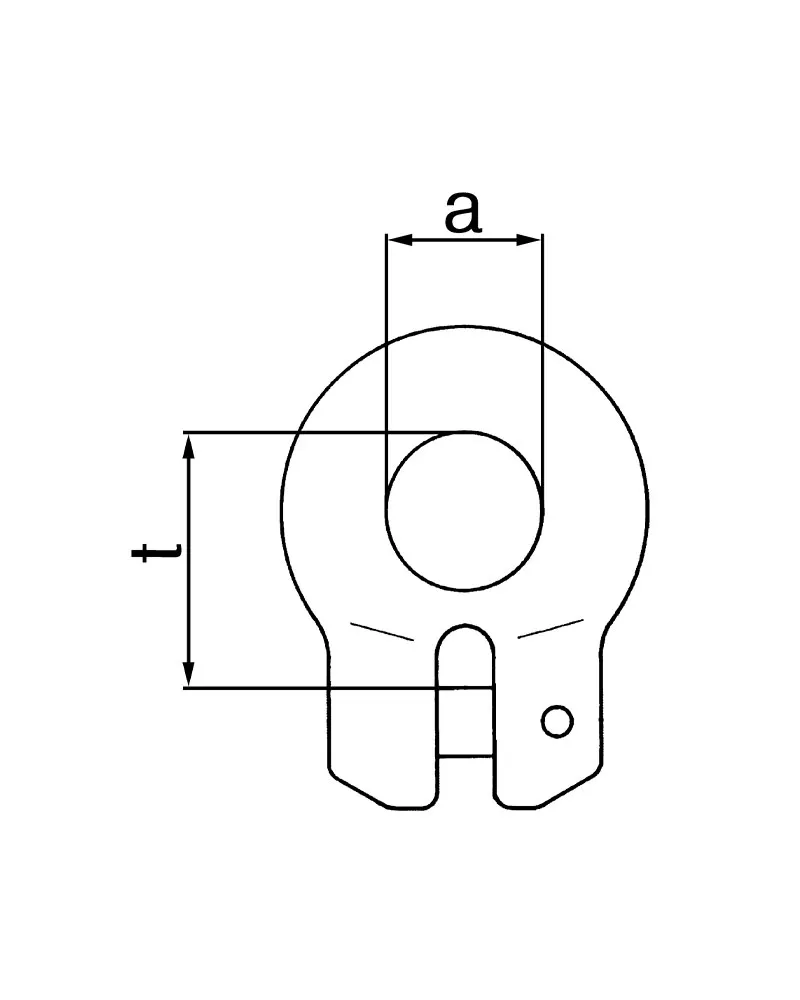

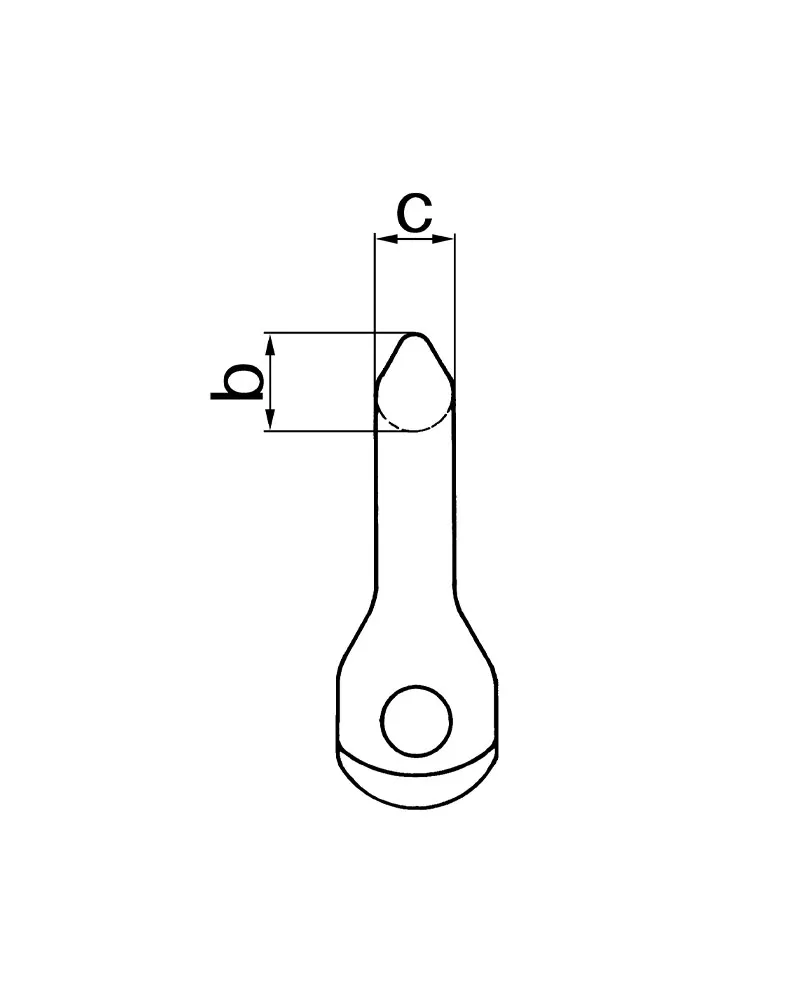

Medidas y peso
| Code | WLL | weight | ident no. | Download 3D | |||||
|---|---|---|---|---|---|---|---|---|---|
| [t] | a [mm] |
b [mm] |
c [mm] |
t [mm] |
[kg] | ||||
| ENORM EGV 6 | 1,4 | 18 | 11 | 9 | 30 | 0,1 | 0351806000 | ||
| ENORM EGV 8 | 2,5 | 24 | 15 | 12 | 41 | 0,2 | 0351808000 | ||
| ENORM EGV 10 | 4,0 | 30 | 19 | 14 | 51 | 0,4 | 0351810000 | ||
| ENORM EGV 13 | 6,7 | 37 | 23 | 18 | 63 | 0,8 | 0351813000 | ||
| ENORM EGV 16 | 10,0 | 47 | 30 | 23 | 78 | 1,7 | 0351816000 | ||
| ENORM EGV 18 | 12,5 | 53 | 33 | 26 | 89 | 2,5 | 0351818000 | ||
| ENORM EGV 22 | 19,0 | 59 | 36 | 29 | 104 | 4,0 | 0351822000 |
