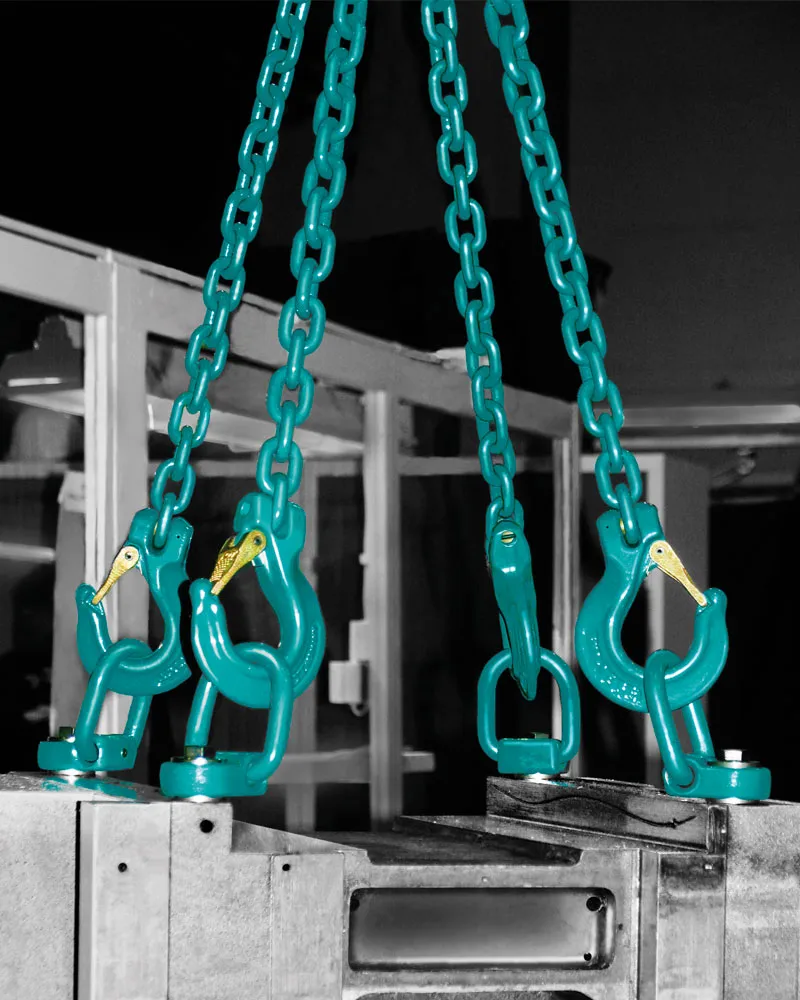

Produkt anwendungsbild enorm rundstahlkette.webp

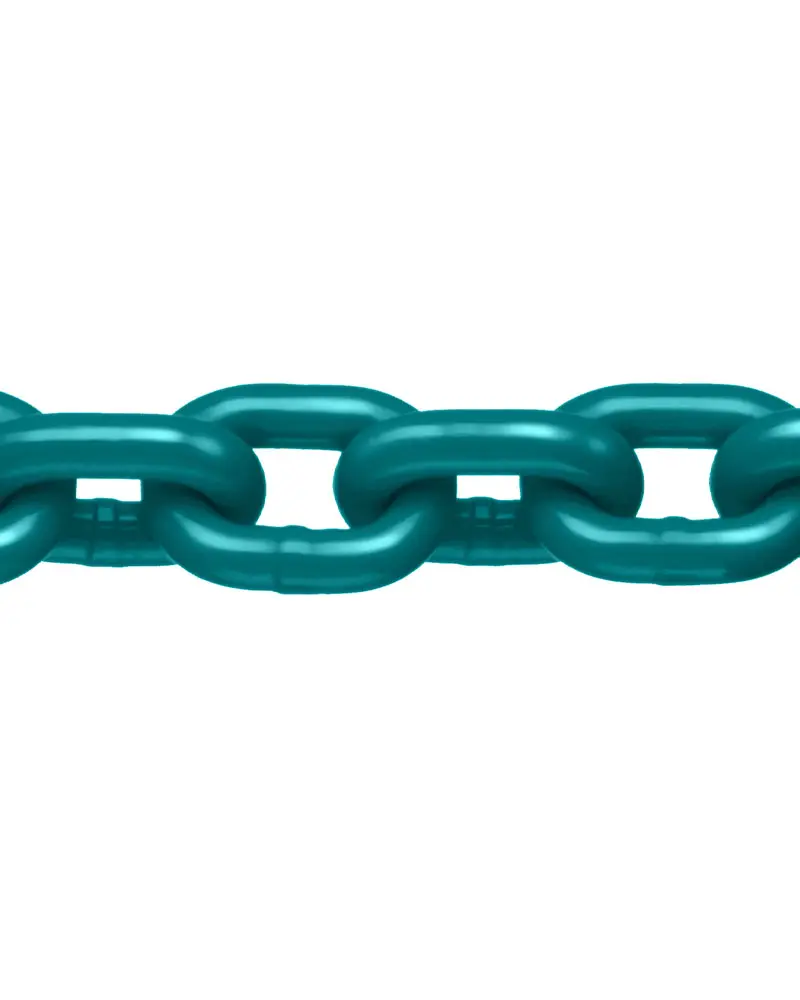

Cadena de eslabones redondos ENORM

With the same nominal chain link thickness, the load capacities are 25 % higher than the values specified in EN 818-2 for Grade 8
The elongation at fracture in natural black is min. 25 %.
For variant surface the elongation at fracture is min. 20 %.
The surface is RAL 5021 water blue, powder coated.
Other custom designs are available upon request.

Categoría: CADENAS DE ESLABONES REDONDOS Etiqueta: ROUND LINK CHAINS

Descripción

Cadena de tolerancia media NORM de grado 100 según PAS 1061.
Las dimensiones cumplen con los requisitos de la norma EN 818-2.

Peso y medidas

Code	nominal size	WLL	proof force (MPF)	breaking force (BF)	Weight	Ident no.
	[mm]	[t]	[kN]	[kN]	[≈kg/m]
EK 6	6×18	1,4	35,3	56,5	0,85	0310206003
EK 8	8×24	2,5	62,8	101	1,41	0310208003
EK 10	10×30	4,0	98,1	157	2,37	0310210003
EK 13	13×39	6,7	166	265	3,87	0310213003
EK 16	16×48	10,0	251	402	6,02	0310216003
EK 18	18×54	12,5	318	509	7,9	0310218003
EK 22	22×66	19,0	475	760	11,4	0310222003
EK 26	26×78	26,5	664	1060	15,89	0310226003
