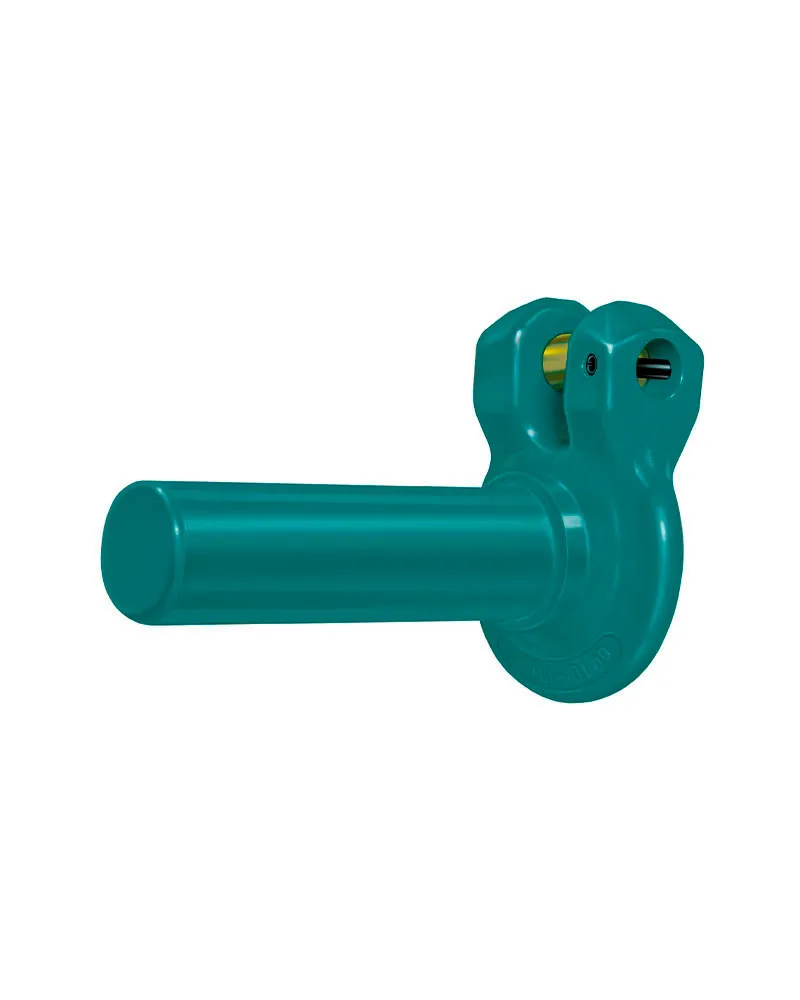

El conector de horquilla permite un fácil montaje.

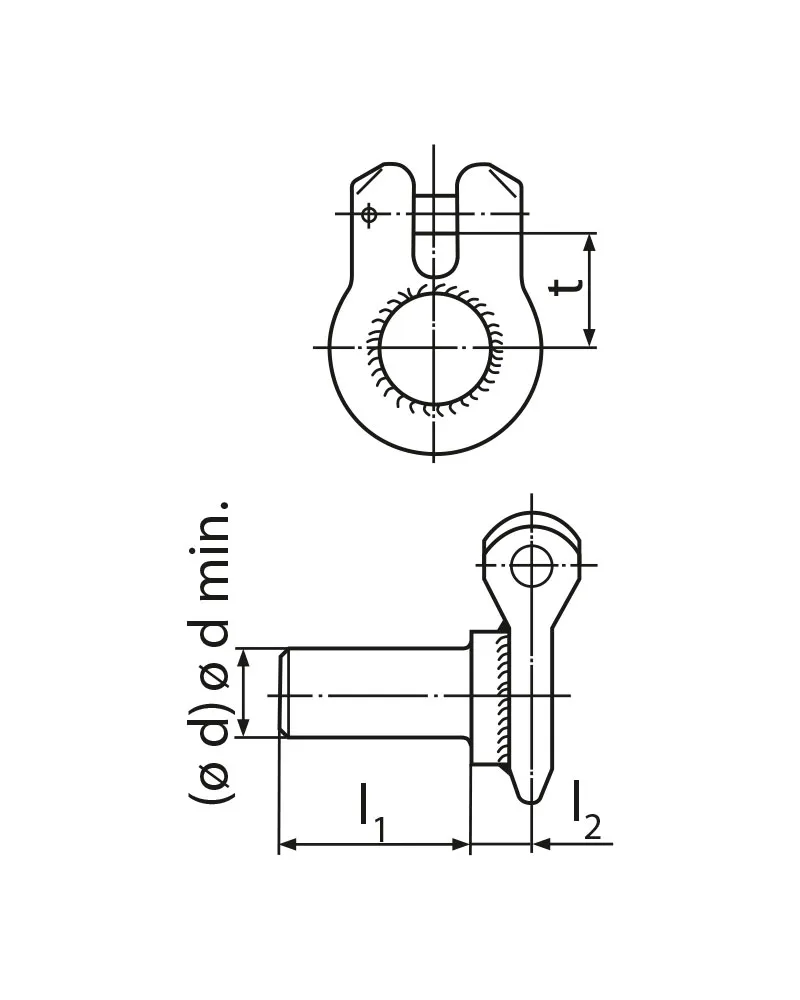

Medidas y peso
| Code | WLL | weight | ident no. | Download 3D | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| [t] | Ød min. [mm] |
Ød | l1≥2d | l2 | t | [kg] | ||||
| ENORM EB 6 | 1,4 | 17-24 | 11 | 21 | 0352506… | |||||
| ENORM EB 8 | 2,5 | 23-30 | 15 | 29 | 0352508… | |||||
| ENORM EB 10 | 4,0 | 29-38 | 18 | 34 | 0352510… | |||||
| ENORM EB 13 | 6,7 | 36-42 | 24 | 42 | 0352513… | |||||
| ENORM EB 16 | 10,0 | 46-52 | 29 | 54 | 0352516… | |||||
| ENORM EB 18 | 12,5 | 52-64 | 33 | 60 | 0352518… |
