Grillete ENORM forjado en estampa con diseño recto. Fabricado según la norma EN 1677-1.

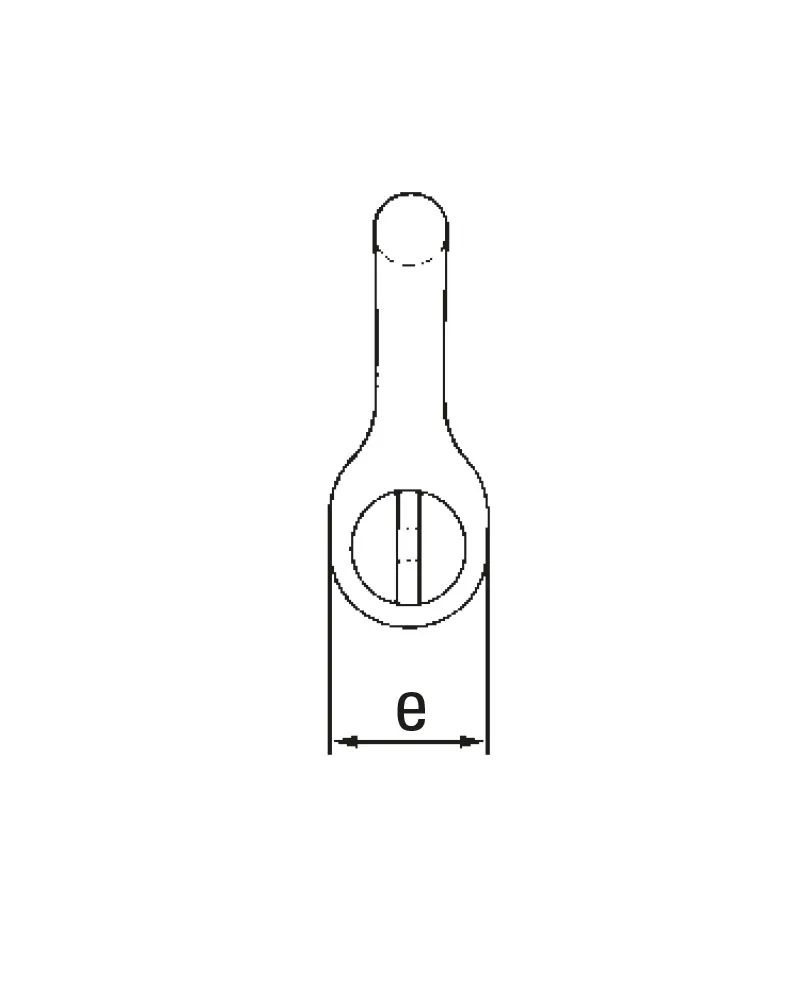

Medidas y peso
| Code | WLL | weight | indent no. | Download 3D | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| [t] | a [mm] |
b [mm] |
c [mm] |
Ød [mm] |
e [mm] |
t [mm] |
[kg] | ||||
| ENORM EVS 10 | 4,0 | 23 | 49 | 15 | 16 | 31 | 49 | 0,4 | 0351610000 | ||
| ENORM EVS 13 | 6,7 | 27 | 61 | 19 | 20 | 38 | 61 | 0,8 | 0351613000 | ||
| ENORM EVS 16 | 10,0 | 34 | 76 | 24 | 24 | 48 | 73 | 1,5 | 0351616000 | ||
| ENORM EVS 18 | 12,5 | 40 | 88 | 27 | 27 | 56 | 84 | 2,2 | 0351618000 | ||
| ENORM EVS 22 | 19,0 | 48 | 108 | 33 | 36 | 72 | 112 | 4,8 | 0351622000 |
